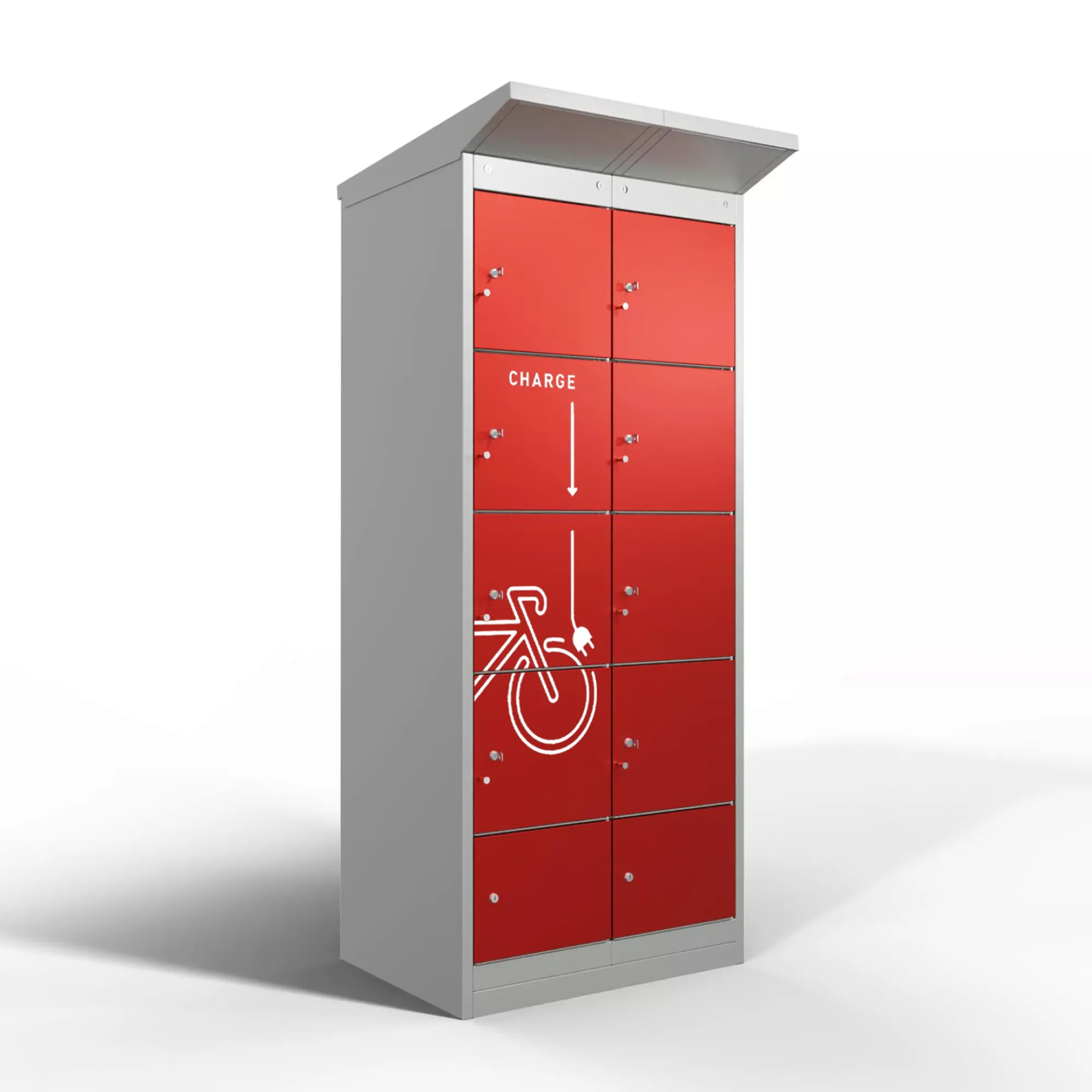

E-Bike-charging station 8 charging compartments
€0.00
E-Bike Charging Station – a real asset for your business!
With the E-Bike charging station, you create an attractive advantage for your site. With around 4 million E-Bikes in France, your site can tap into a large pool of potential customers, visitors, and employees.
Our E-Bike charging station combines both a charging point and a secure locker. The generous storage space provides enough room for batteries, helmets, and luggage, allowing users to leave their belongings safely and enjoy their visit.
The station is specially designed for outdoor installation and requires no additional weather protection. Thanks to its high quality and modern design, it serves as an attractive USP for your site.
Discover the quality features of our E-Bike charging station
- Body made of galvanized steel with UV-resistant powder coating
- Excellent quality “Made in Germany”
- Weather-resistant steel construction
- 8 charging compartments protected against dust and water, each equipped with 2 outlets (230 V, 16 A) compliant with IP44
Available in several colors and with different locking systems, the station can also be equipped with optional LED lighting. The service compartment comes with a standard cylinder lock and a self-adhesive marking (plotter) for user installation.
Order now and turn your site into a more attractive destination!
Installation Instructions:
The e-bike charging station must be installed on a stable concrete foundation, with dimensions matching the module footprint and a minimum thickness of 50 cm. A cable protection sleeve, with a five-core connection cable (400 V, minimum cross-section: 2.5 mm²), must pass through the center of the foundation. A drilling template for anchoring the station is included with the delivery. Detailed installation instructions are available in the user manual.
| Power supply: | 400 V / 3x 16 A |
|---|---|
| Number of doors: | 8 |
| Charging function: | Per compartment: 2x socket type F |
| Compartment depth: | 60 cm |
| Tray height: | 35 cm |
| Tray width: | 34 cm |
| Diffuser size (HxW): | 35 x 28 cm |
| Material: | Galvanised steel sheet |
| Sheet thickness body: | 1,0 - 1,5 mm |
| Sheet thickness door: | 1.0 mm |
| Height: | 213,8 cm |
| Depth: | 62,1 cm (without roof overhang), 84,7 cm (including roof overhang) |
| Wide: | 86 cm |
| Weight: | 250 kg |
Manufacturer specifications:
LOCKEEL S.à r.l., 30 ZARE Ouest, L-4384 Ehlerange, Luxembourg | info@lockeel.com | lockeel.com
Safety information: Please read the data sheet/operating instructions!
- When assembling, ensure that the product is stable and follow the instructions carefully. Check regularly that it is stable and in a safe condition.
- Only charge one device per socket and do not connect multiple sockets.
- Keep out of reach of children to minimise the risk of injury or danger from improper use.
- Do not place near sources of heat and do not place drinks, food or other liquids on or in the product.
- Work (e.g. maintenance/repair) on the product and electrical equipment may only be carried out by the manufacturer or qualified personnel.
